Mission to Mars

USD 383 STEM Camp - Day 2

al-Khwārizmī

Abū ʿAbdallāh Muḥammad ibn Mūsā al-Khwārizmī

Image Source: Wikipedia

Algorithm

A finite list of specific instructions for carrying out a procedure or solving a problem

Euclid

Image Source: Wikipedia

Euclid's Algorithm (GCD)

1. Start with 2 numbers, A and B
2. If either one is zero, the answer is the other number
3. Subtract the smaller number from the larger number
4. Repeat steps 2 - 4 until an answer is found

Example: GCD of 1071 & 462

Example: GCD of 1071 & 462

• 1071, 462
• 609, 462
• 147, 462
• 147, 315
• 147, 168
• 147, 21
• 126, 21
• 105, 21
• 84, 21
• 63, 21
• 42, 21
• 21, 21
• 21, 0
• 21

Sorting Algorithms

• Insertion Sort
• Bubble Sort
• Merge Sort
• Quicksort

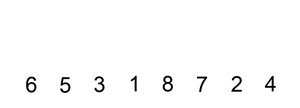

Insertion Sort

Image Source: Wikipedia

1. Choose an element from the source
2. Place it in the correct place in the destination
3. Repeat until source is emtpy

Bubble Sort

Image Source: Wikipedia

1. Compare the first two elements
2. If they are out order, swap them
3. Move one element over and repeat
4. When the end is reached, start over
5. Continue until no more swaps are made

Big O Notation

• A way to express the complexity of an algorithm
• Approximates the number of steps needed based on the size of the input
• Assumes the input is a "worst case" input

Bubble Sort - Worst Case?

• 3, 2, 5, 4, 7, 6, 9, 8, J, 10, K, Q, A
• A, 2, K, 3, Q, 4, J, 5, 10, 6, 9, 7, 8
• A, Q, K, 10, J, 8, 9, 6, 7, 4, 5, 3, 2
• A, K, Q, J, 10, 9, 8, 7, 6, 5, 4, 3, 2
• 2, 4, 6, 8, 10, Q, A, 3, 5, 7, 9, J, K

Bubble Sort - Worst Case?

• 3, 2, 5, 4, 7, 6, 9, 8, J, 10, K, Q, A - 6
• A, 2, K, 3, Q, 4, J, 5, 10, 6, 9, 7, 8 - 42
• A, Q, K, 10, J, 8, 9, 6, 7, 4, 5, 3, 2 - 73
• A, K, Q, J, 10, 9, 8, 7, 6, 5, 4, 3, 2 - 78
• 2, 4, 6, 8, 10, Q, A, 3, 5, 7, 9, J, K - 21

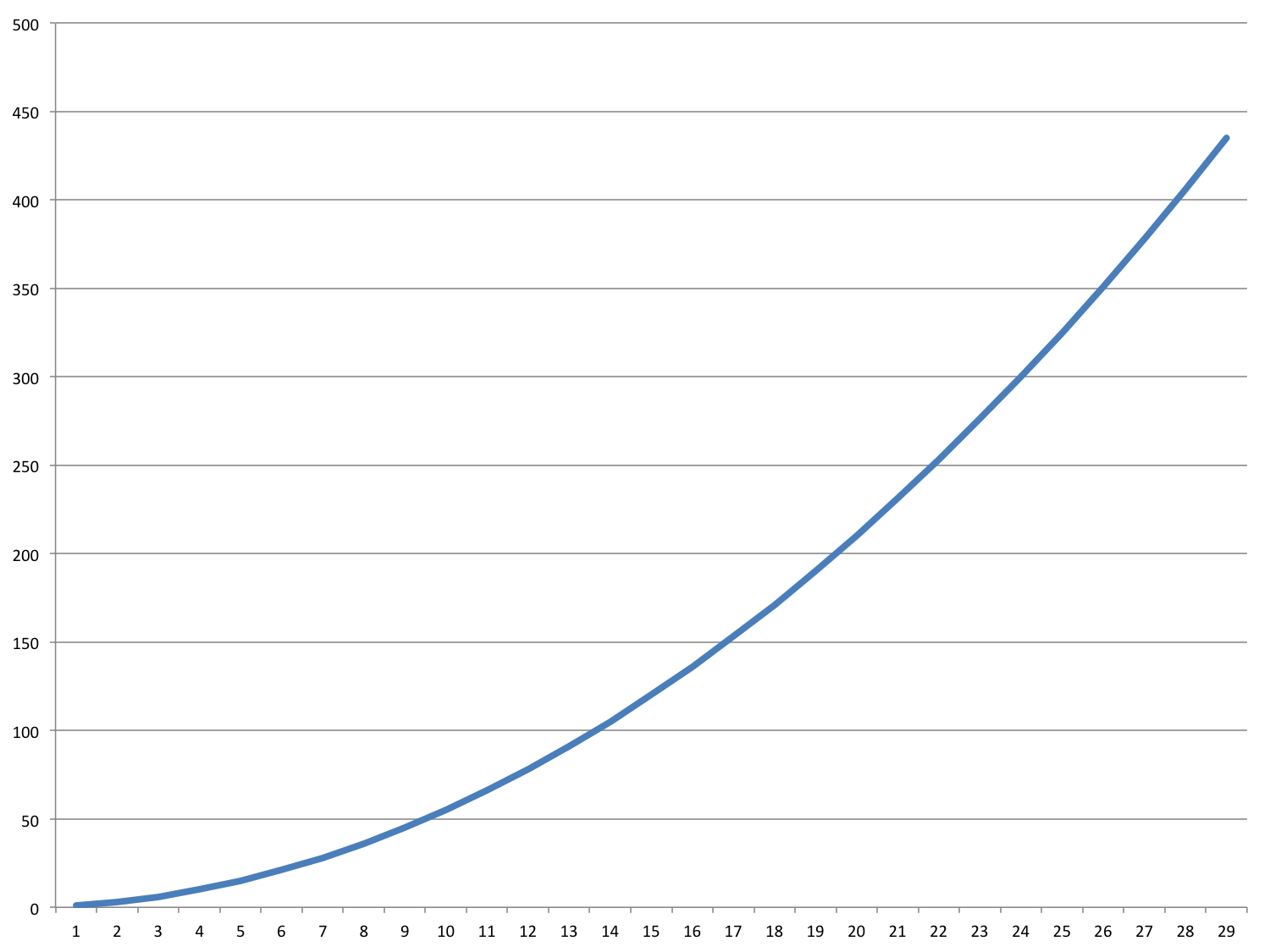

Bubble Sort - Worst Case?

Sorting Algorithms

• Insertion Sort - O(n²)
• Bubble Sort - O(n²)
• Merge Sort
• Quicksort

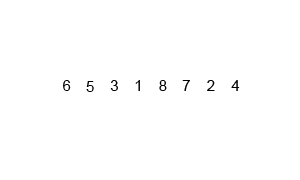

Merge Sort

Image Source: Wikipedia

Merge Sort

1. Split the items into two halves
2. Repeat step 1 until each has 1 item
3. Choose 2 parts and merge them together by choosing the smallest item repeatedly from the front of each part
4. Continue merging parts together until no more remain

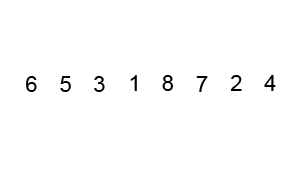

Quicksort

Image Source: Wikipedia

Quicksort

1. Choose an item from the list as a "pivot"
2. Put all items less than that item to its left, and put all items greater to its right
3. Repeat these steps for the items on each side of the pivot.

Sorting Algorithms

• Insertion Sort - O(n²)
• Bubble Sort - O(n²)
• Merge Sort - O(n log n)
• Quicksort - O(n²) - avg. O(n log n)

Chemistry

• Hydrazine → N₂H₄
• N₂H₄ + Iridium Ionizer → 2N + 4H
• Oxygen Reclaimer → O
• Plant Respiration → O
• 2H + O + Fire → H₂O
