Parallelizing the NEAT Method using UPC

Russell Feldhausen

What is NEAT?

• NeuroEvolution of Augmenting Topologies
• Based on Evolutionary Computing and Neural Networks
• Developed by Stanley and Miikkulainen at the University of Texas
• Known to gamers through MarI/O by SethBling on YouTube

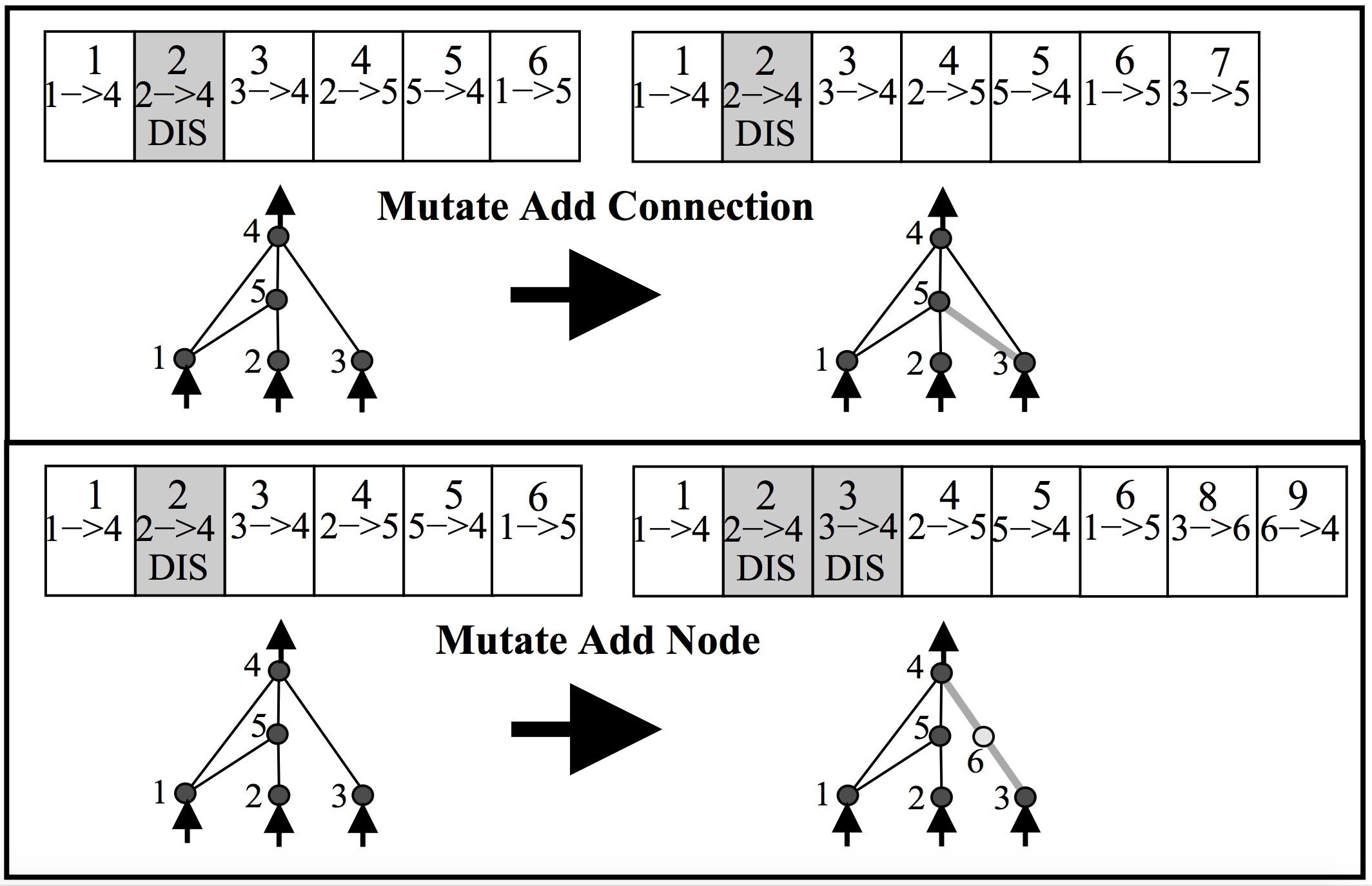

Features of NEAT

• Neural Network of input nodes, output nodes, and hidden nodes
• Connecting links have real number weights assigned to each
• Similar networks are grouped into "species" to protect novel features
• Networks can crossbreed to share features

My Approach

• Use UPC and the PGAS model to parallelize NEAT
• A global population of networks shared across threads
• Each thread evolves and evaluates new networks locally, then shares them globally
• Continue until solved or stagnation

Algorithm - Phase 1

1. Cull bottom 50% of each species
2. Randomly breed/crossbreed within species to fill population
3. Evaluate and retain single best network in each species

Algorithm - Phase 2

1. Breed species representatives to repopulate
2. Evaluate new children and place into species, creating new species as needed

Optimizations

• No dynamic memory allocation
• Networks are bred and evaluated on local thread memory, then copied to shared memory
• Two shared memory buffers (read-only and write-only) to prevent race conditions and eliminate locks
• Single lock for few shared variables

Testing

• Two input binary XOR function
  • Requires a hidden node to solve
  • Used by Stanley and Miikkulainen as a baseline test

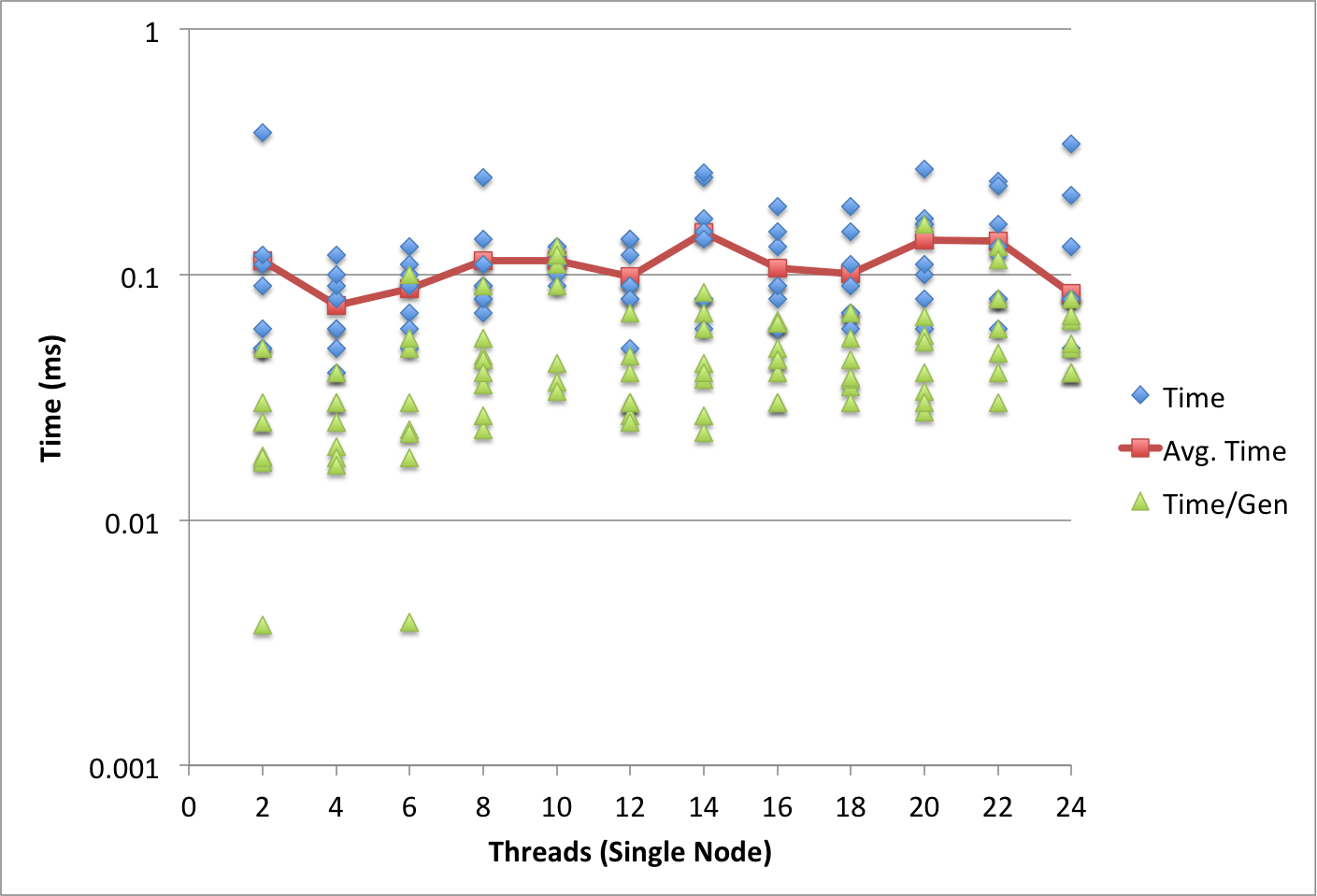

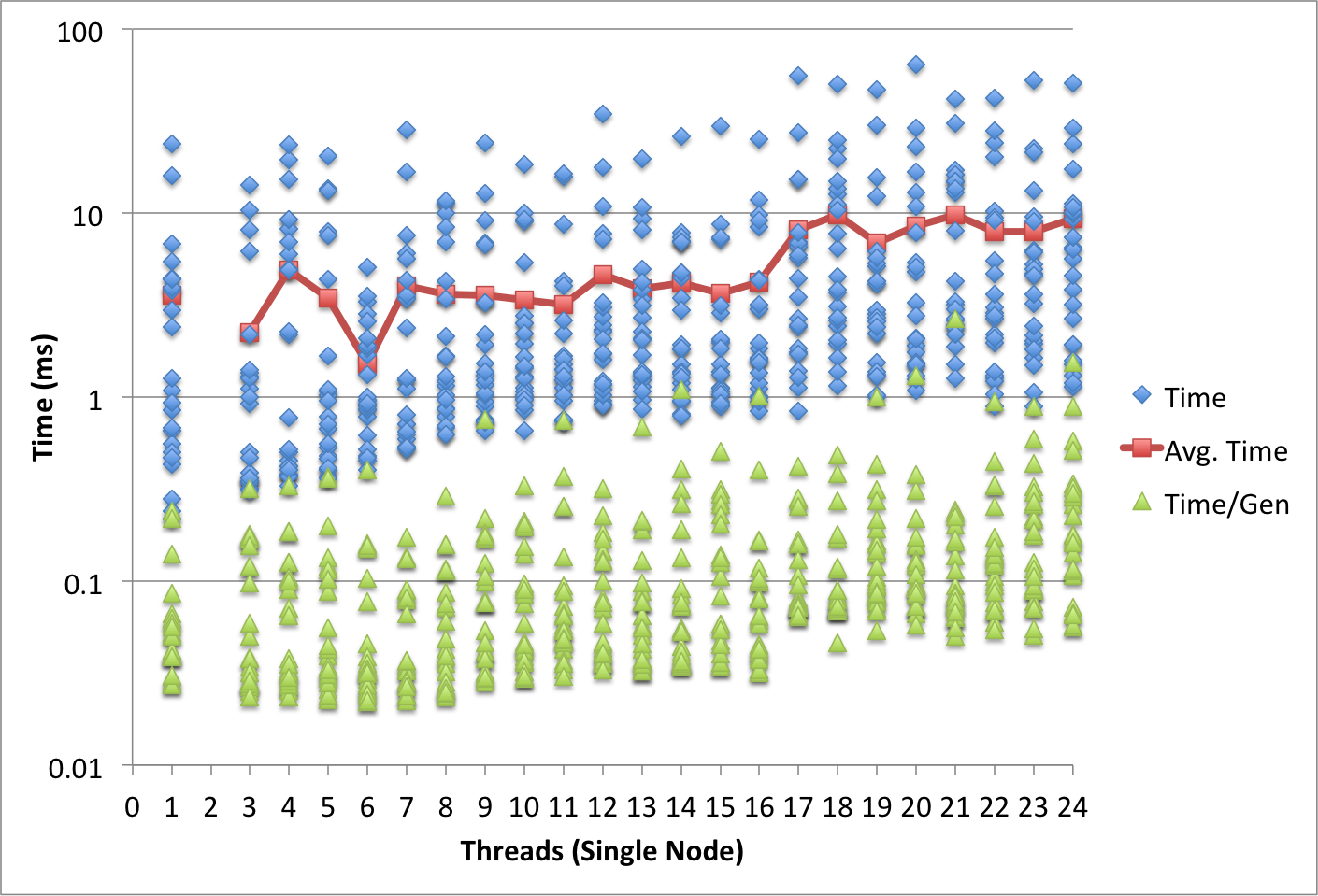

• Single-node scaling
• Multi-node scaling

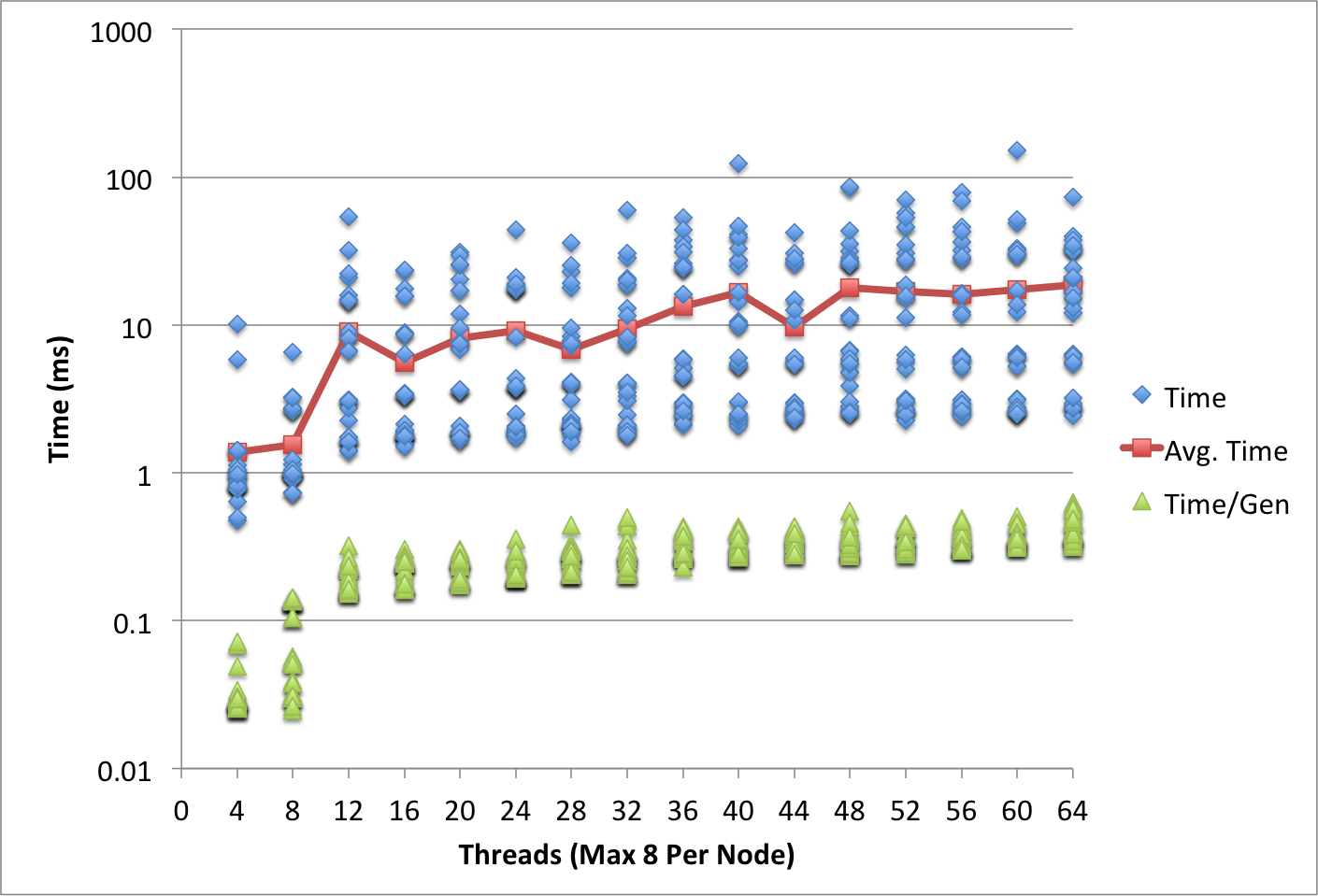

  • Max 8 threads/node

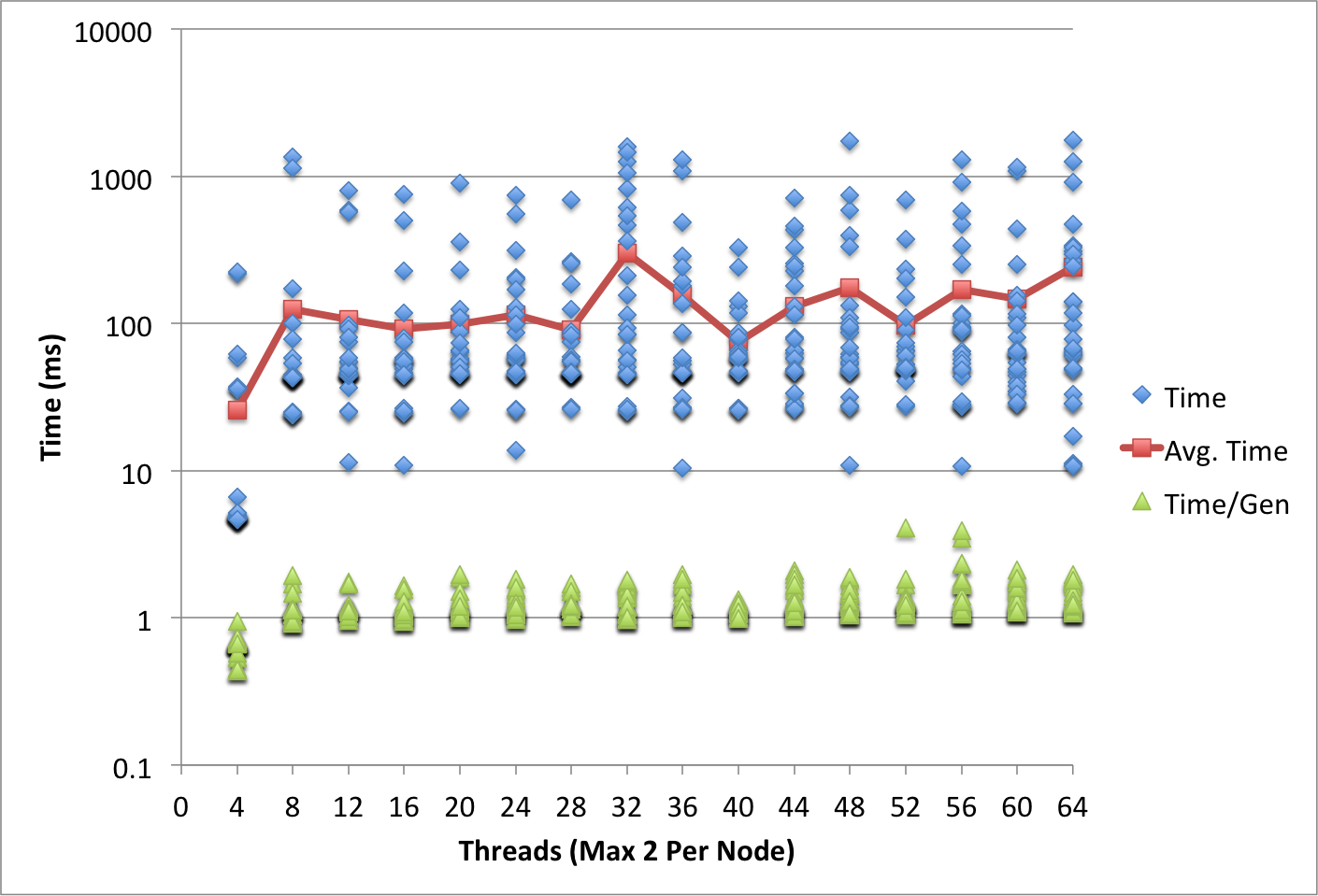

  • Max 2 threads/node

Second Testing

• First test results == No scaling
  (but not bad overhead either)
• Ran two more tests:
  • Each thread has large local population, no shared memory; stop when any thread finds a solution

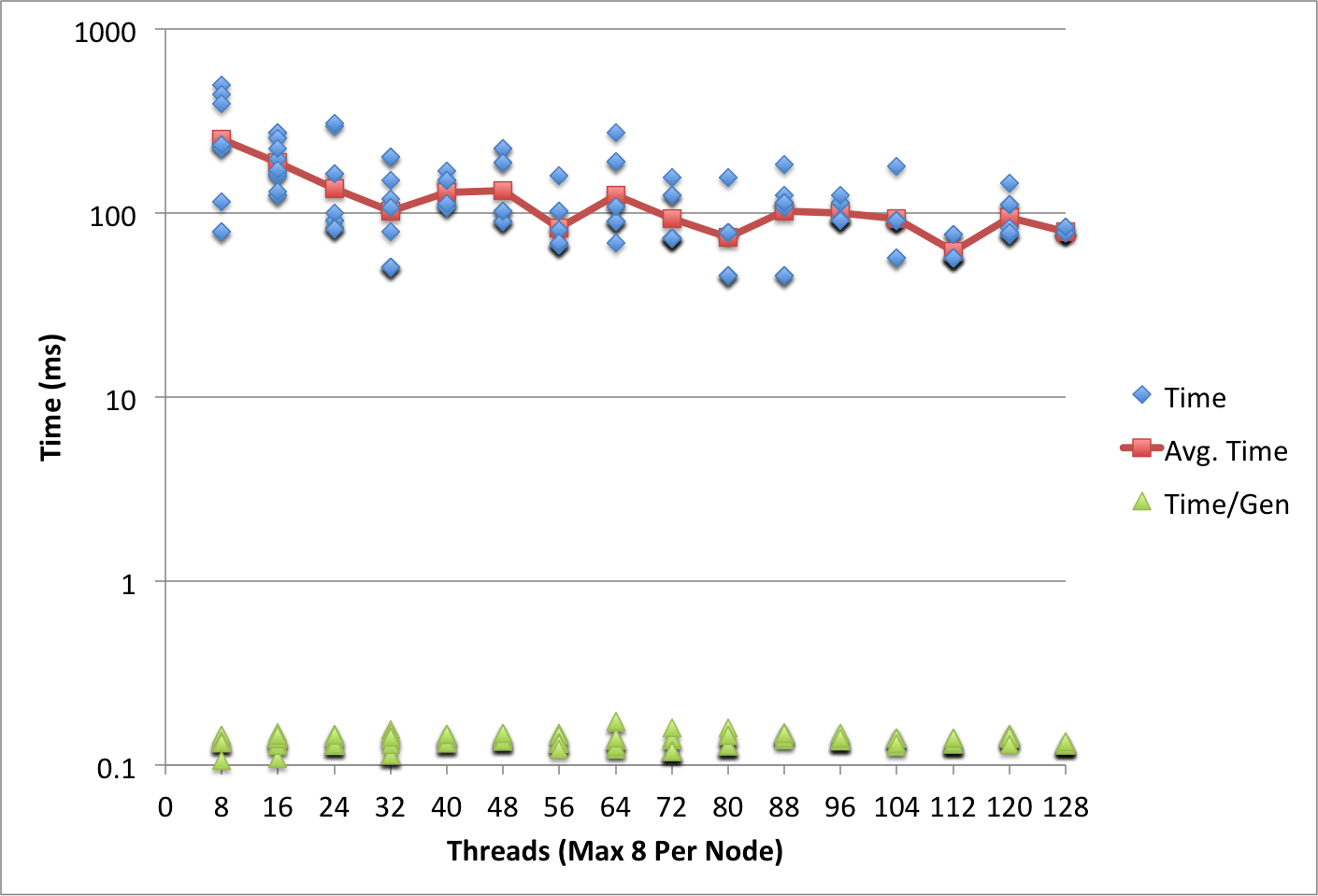

  • Repeat that attempt with larger 3 input binary XOR problem

Outcome

• UPC makes PGAS very simple
• NEAT can be parallelized, but no scaling present by default
• Distributed, independent NEAT threads do show scaling across many nodes
• More evaluation with larger problems may reveal different results
